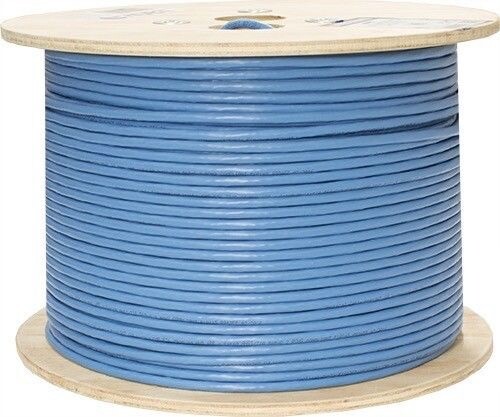

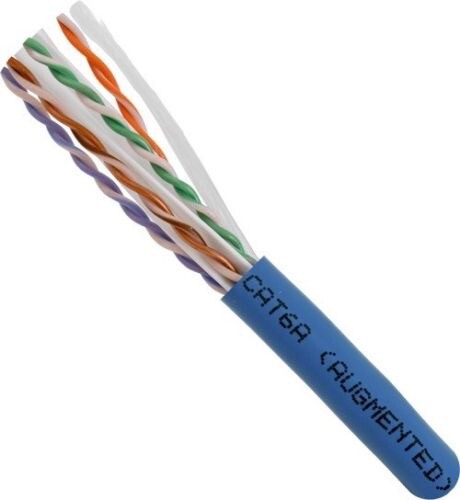

PLENUM CAT6A 10G Solid-Bare Copper Bulk Cable BLUE 100,200,300,400FT
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Type | Ethernet Patch Raw |
| Category | Cat6A |
| Brand | Vertical |
| MPN | Does Not Apply |

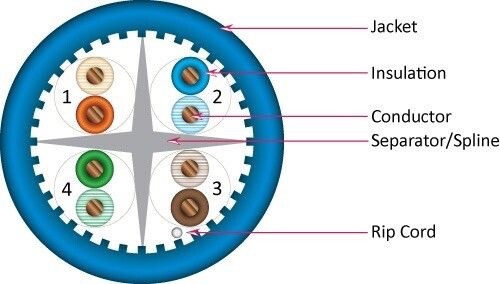

CAT6 Augmented Cable UTP Plenum (CMP) 23AWG Plenum, unshielded four twisted pairs, Category 6A Horizontal Cable Tested to 500 MHz. NEC Article 800, ANSI/TIA/EIA 568C.2 Category 6A, 11801:2002 Category 6A, UL 910:CMP Rating, RoHS Compliant Supports all category 6A applications including Ethernet 10 Gigabit, 100BASETX,100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422. CONSTRUCTION Conductor: 23 AWG Solid Bare Copper Number of Conductors or Pairs: 4 Pair Jacket Material: Low-smoke Flame Retardant Plenum Polymer Nominal Overall Cable Diameter: 0.330 in. Approximate Cable Weight: 46 lb/1,000 ft. ELECTRICAL & PHYSICAL PROPERTIES Temperature Rating: Installation: 0°C to 50°C Operation: -2°C to 60°C Velocity of Propagation: 72% Mutual Capacitance: 14 pF/ft Nominal Capacitance Unbalance: 330 pF/ft maximum Maximum Conductor D.C.R.: 28.6Ω /1,000 ft Maximum D.C.R. Unbalance: 3% Maximum Delay Skew: 45ns/100m Characteristic Impedance: From 0.772 MHz - 100 MHz 100 ± 15% From 100 MHz - 200 MHz 100 ± 22% From 200 MHz - 500 MHz 100 ± 32% Insulation Colors: Blue paired with White/Blue Orange paired with White/Orange Brown paired with White/Brown Green paired with White/Green Minimum bend radius: 1.250 in. Note:All our Ethernet wires are Bare Copper. We do not sell CCA (Copper Clad Aluminium). CCA is not permitted by cabling industry Standards and we strongly advise againts the use of CCA in twisted pair network cable. The use of CCA wire directly affects data speed and distance. _gsrx_vers_856 (GS 7.0.20 (856))
