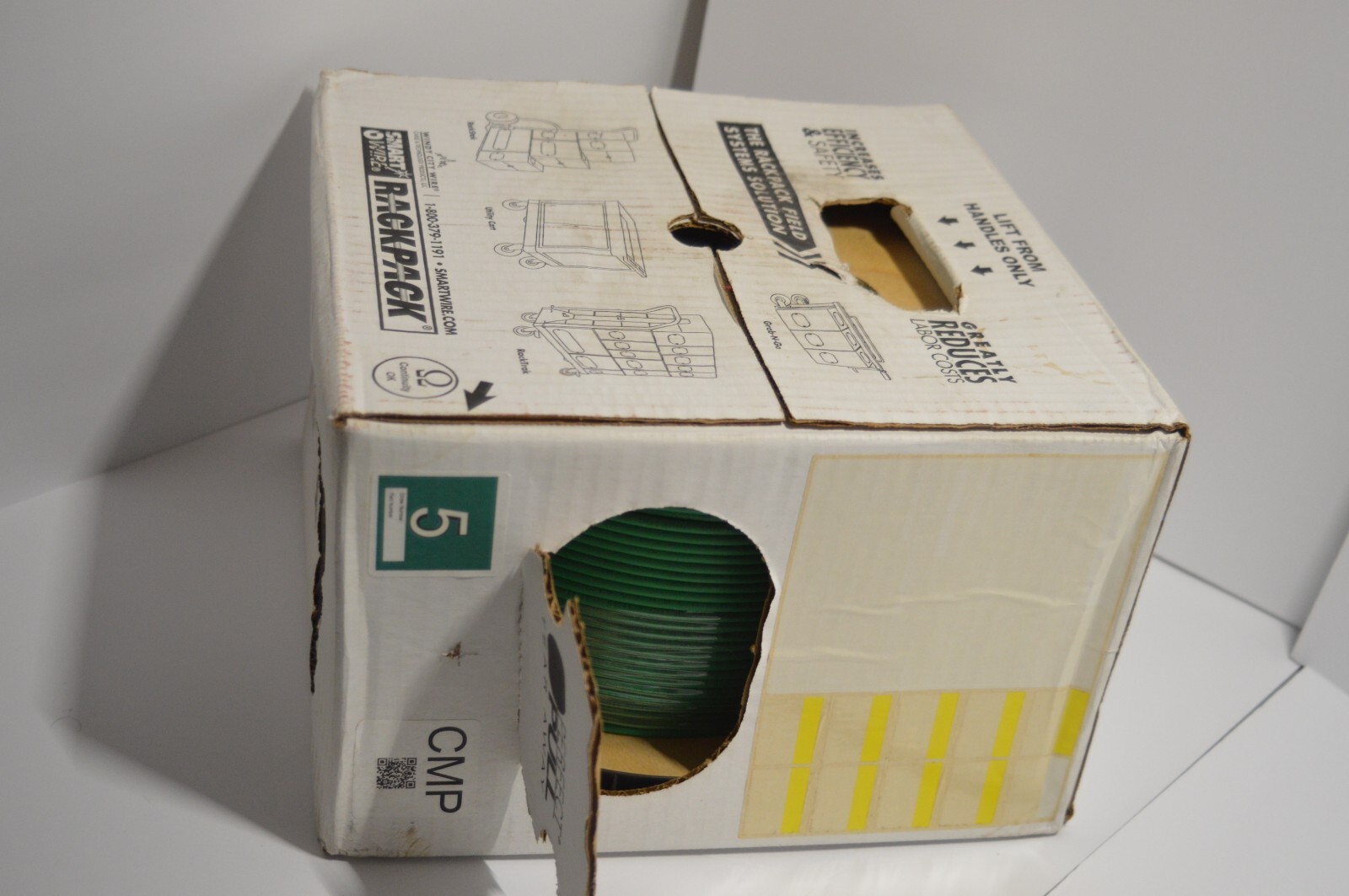

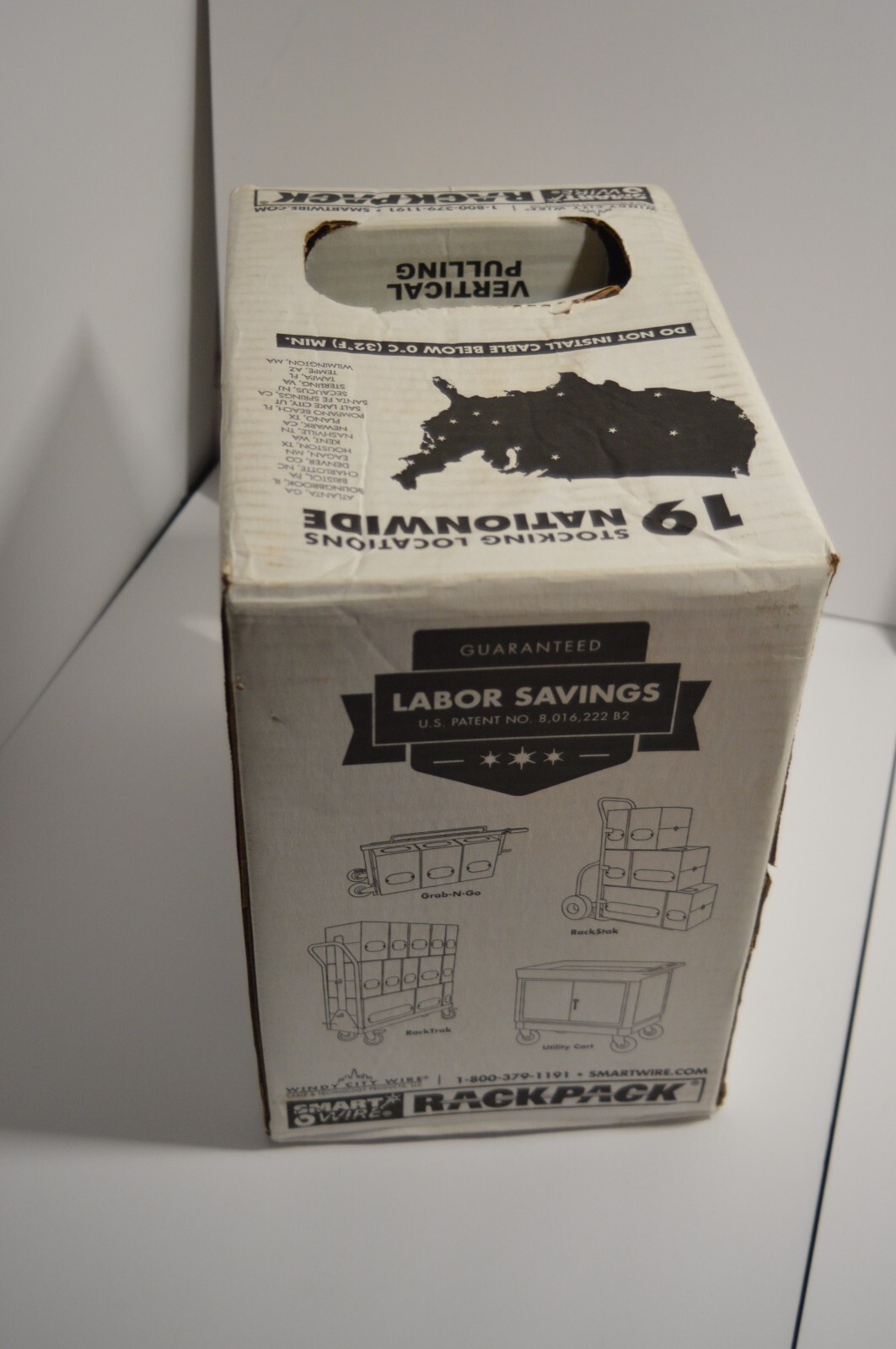

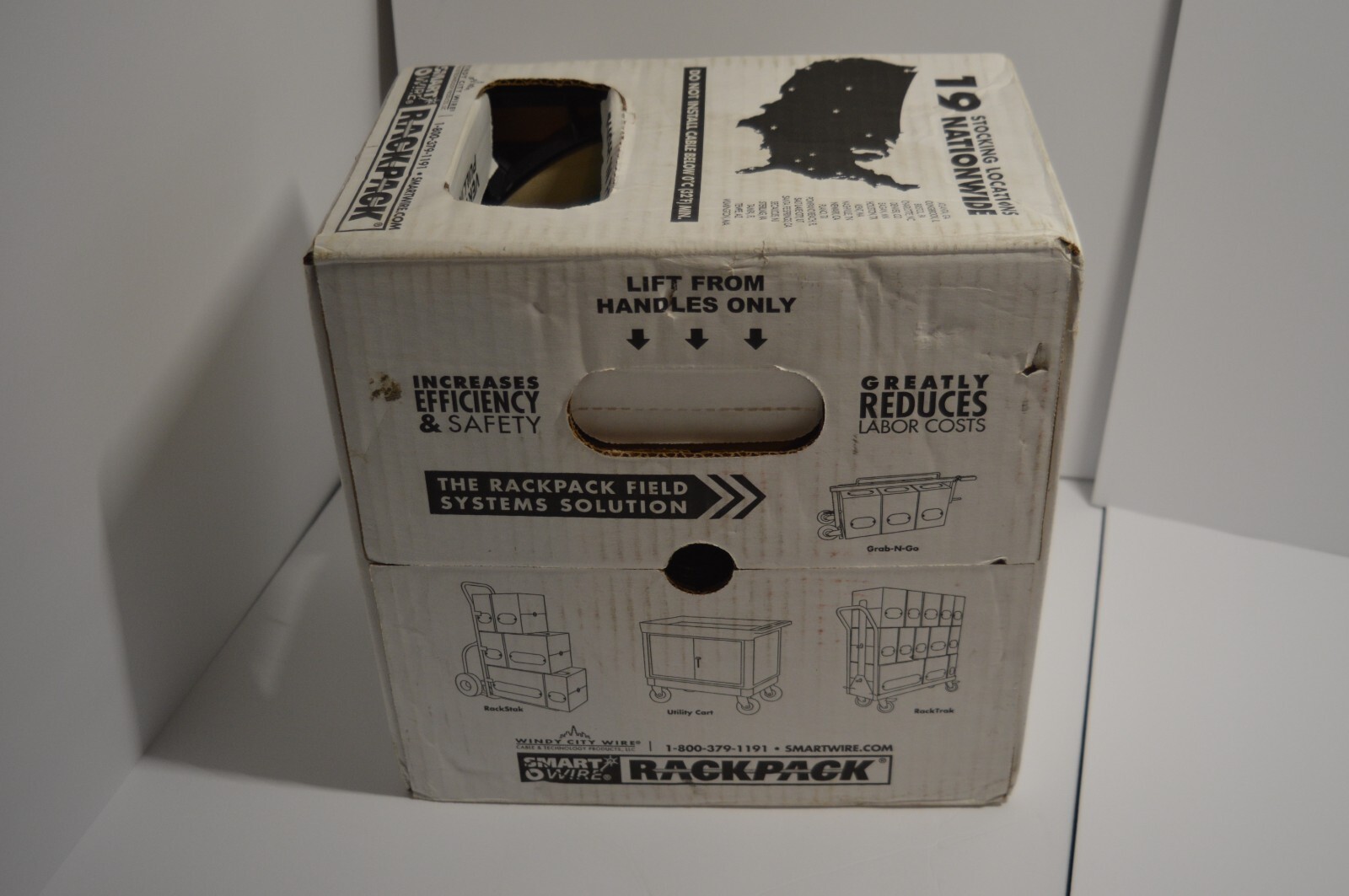

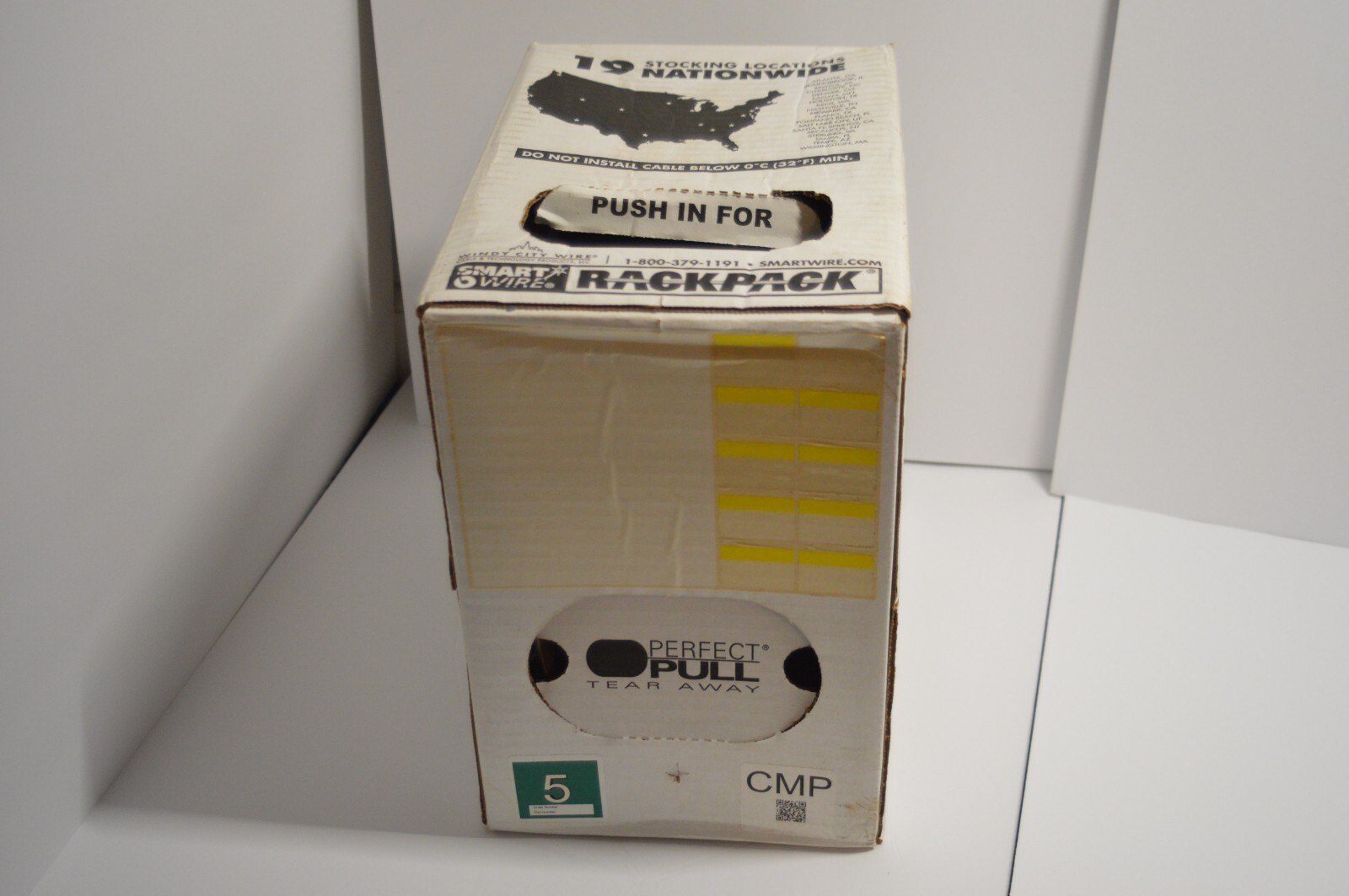

Windy City Wire 24 AWG 4 Pair Non-Shielded Plenum Category 5E Green Jacket 55561
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Connector B | Ethernet (RJ-45) |
| MPN | 5556160 |
| Connector A | Cat 5e |
| Unit Quantity | 24 lbs |
| Brand | Windy City Wire |
| Color | Green |
| Cable Length | 1000 ft |
| Type | Cable |
Features:Part Number: 5556160 Category: Category Cable; Low-Voltage Wire Gauge: 24 Conductor: 4 Pair Shield: Unshielded Plenum Rating: PlenumAdditional Info: 24 AWG 4 Pair Bare Copper, Non-Shielded Plenum Rated Category 5e 350 mhz Gauge: 24 Conductor: 4 Pair Shield: Unshielded Print: A B C D E 0 1 2 3 4 5 6 7 8 9 Verified ANSI/TIA 568-C.2 CAT 5e Color Code: White-Blue/Blue, White-Orange/Orange White-Green/Green, White-Brown/Brown OD: .175" Nom. Weight: 19 Lbs/Mft. Jacket Color: Green Jacket Note: 350 Mhz, 4 Pair CABLE SPECIFICATIONS DESCRIPTION 24 AWG Category 5e Unshielded Twisted Pair (UTP) Cable for Data Transmission up to 350 MHz. This cable is Plenum Rated and Verified to Category 5e Electricals CONDUCTOR 24 AWG Solid Bare Copper INSULATION FEP COLOR CODE White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/BrownJACKET JACKET COLOR MARKING Low-Smoke PVC Green Jacket* 1000/0000 * A B C D E 0 1 2 3 4 5 6 7 8 9 UTP 4/24 C(ETL)US CMP VERIFIED (ETL) CAT5E 5013896 350 MHZ TIA-568-C.2 WINDY CITY WIRE MADE IN USA OVERALL DIAMETER .175" Nom. CABLE WEIGHT 24 Lbs/Mft. CAPACITANCE IMPEDANCE DC RESISTANCE TEMPERATURE RATING VOLTAGE RATING 5.6 nF/100 Meters @ 1 kHZ 100 +/- 15 Ohms (0.772-100.0 MHz) 9.38 Ohms / 100 Meters @ 20 C 60 C / 300 Volt 300 Volts INDUSTRY STANDARDS FLAME RATING Approved For Plenum Use Without Conduit Per NFPA 262 Flame Test AGENCY APPROVALS ETL Listed Type CMP, Verified to ANSI/TIA 568-C.2 UTP Category 5E New in box, 1000ft CAT5E still in plastic wrap packaging around the spool of wire never pulled. Box is dirty but all original contents are still in place. Very high quality soil copper internet cable, MADE IN USA. (SOLD AS IS) No manufacture warranty Wire produced in 2019. Wire suitable for residential use or commercial use great for all styles of network instillation within specifications of wire build. If there are any questions please send a message Thank You.
